Robust & Reliable
Strong mechanical protection for harsh industrial environments
PLCC
PLCC package delivers robust mechanical strength,
excellent thermal stability, and high reliability
for demanding industrial environments.

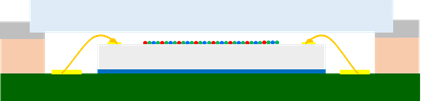

PLCC PACKAGE STRUCTURE
- J-lead design for reliable solder connection
- Excellent mechanical strength and board-level durability
- Good heat dissipation for stable operation
PLCC PACKAGE APPEARANCE
Top View (Sample 1)
Top View (Sample 2)
Top View (Sample 3)
KEY FEATURES
-
-
Wide Temperature Range
Operating range
-40°C to +125°C -
Cost-Effective
Mature package technology with high cost competitiveness
-
High Compatibility
Compatible with standard SMT process and various PCB designs
RELIABILITY QUALIFICATION RESULTS
| # | Stress Item | Condition | Sample size / Lot | Number of Lots | Total sample | Test 1 500 cycle/ 504 hrs |
Judgment |
|---|---|---|---|---|---|---|---|
| 1 | Temperature Cycling (TC) | -55°C ~ 125°C | 77 pcs | 3 | 231 | 0 | PASS |
| 2 | High Temperature Storage (HTS) | 150°C | 77 pcs | 3 | 231 | 0 | PASS |
| 3 | High Temperature Operating Life (HTOL) | 125°C | 77 pcs | 3 | 231 | 0 | PASS |
| 4 | Power Temperature Cycling (PTC) | -40°C ~ 125°C | 77 pcs | 3 | 231 | 0 | PASS |
| 5 | Moisture Sensitivity Level (MSL) | MSL 3 (260°C Reflow) | 77 pcs | 3 | 231 | 0 | PASS |
